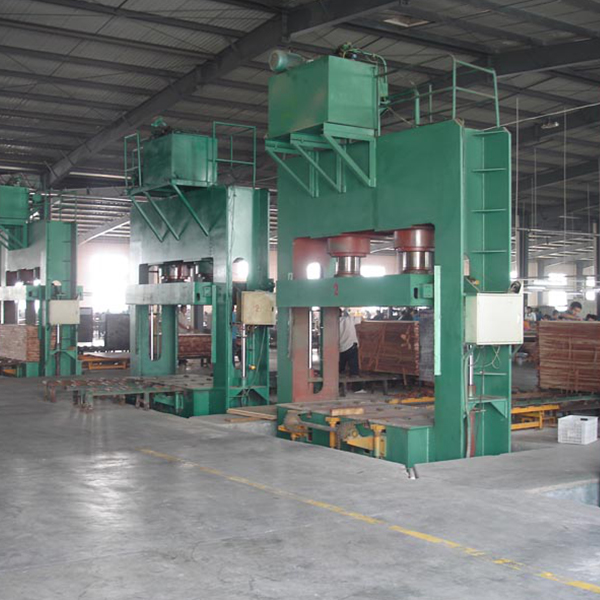

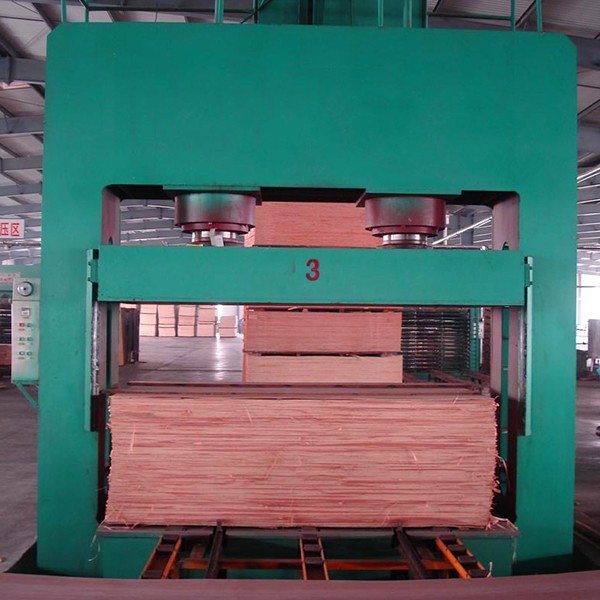

PLYWOOD COLD PRESS/PRE-PRESS MACHINE
Date: 2020-01-15 14:40
View:
About us:
CHINA XINRUNDE COMPANY is a technology company serving the wood-based panel industry worldwide. Founded in 1989 year and located in worlds biggest wood-based panel production base -- LINYI City, which is famous for manufacturing all kinds of veneer, plywood, blockboard, particle board, LVL, MDF,HDF etc.. Thanks

+86-15969943322
Jasonqiao@xrdplymachine.com


Detailed introduction



Brief instructions
Features:
1. The main frame is welded and formed by one-time blanking of national standard steel plate. The structure is reasonable. The force points are calculated strictly. The rigidity is good.
2. The domestic high-quality oil cylinder is adopted, and the oil cylinder is placed underneath. The main parts are selected from high-quality hydraulic parts to ensure the replacement of the insert;
3. Simple maintenance and easy to use;
4. Can be designed according to user requirements specifications.
5. This machine is the key equipment for producing pre-pressing sections such as plywood and film faced plywood and so...



Technical specifications:

Machine model BY814X8/4-IIz
Nominal pressure 4000KN(400TONS)
Boards in-feeding direction Horizontal
Max.opening 1500mm
Dimension of working platform 1380mm x 2700mm
Dimeter of plunger cylinders Ф320mm(Wuxi)
Number of plunger cylinders 2 Pcs
Diameter of side helpful cylinders Ф60mm(Wuxi)
Number of side helpful cylinders 2Pcs
Allowed pressure of plunger cylinders ≤26Mpa
Stroke of plunger cylinders 1000mm
Position of plunger cylinders Upside
Pressure of unit plate blank 12Kgf/cm2
Dimension of the board 2560mm x 1280mm
Allowed pressure ≤26Mpa
Machine net weight 17000Kgs
Control method Automatic pumping station
Thickness of upper and lower crossbeams 900mm
Thickness of steel plate 35mm
Thickness of active crossbeam 400mm
Thickness of steel plate 20mm
Chain and roller transports device YES
Frame structure Composite frame for loading container
